Google Cloud Firestore
Prev Database  Next

Google Cloud Firestore

The Google Cloud Firestore modules enable you to work with documents in your Google Cloud Firestore.

Getting Started with Google Cloud Firestore

Prerequisites

[Note] Note
The module dialog fields that are displayed in bold (in the Boost.space Integrator scenario, not in this documentation article) are mandatory!

Connecting Google Cloud Firestore to Boost.space Integrator

To connect your Google Cloud Firestore to Boost.space Integrator, you’ll need to obtain the project’s Client ID and Client Secret in the Google Cloud Platform, and create a new Firebase project via Google Firebase Console.

Obtaining Client ID and Client Secret

  1. Sign in to Google Cloud Platform using your Google credentials.
  2. Click Select a project > NEW PROJECT.

  3. Enter the desired project name, and click the CREATE button.

  4. Go to APIs & Services > Library.

  5. Search and enable the following required APIs:


    1. Google Cloud Firestore API

    2. Firebase Management API

    3. Google Cloud Storage JSON API

    The desired service option should display as you type. Click on the API/service you want to connect to Boost.space Integrator.


  6. Click the ENABLE button to enable the selected API.
  7. Open APIs & Services > Library, and search and enable the two remaining required APIs (see step 5 above).

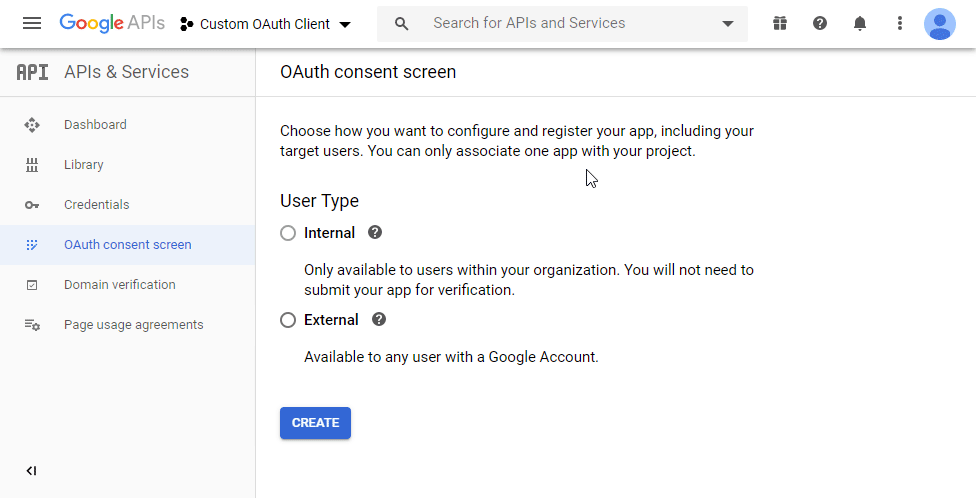

  8. Open the OAuth consent screen settings.

  9. Choose the External option, and click the CREATE button.
    [Note] Note
    You will not be charged when selecting this option! For more details, please refer to Google’s exceptions to verification requirements.

  10. Fill in the required fields as follows, and then click the Save button:

    Application name
    		 Enter the name of the app asking for consent.

    For example, Boost.space Integrator.

    Scopes for Google APIs
    		 Click the Add scope button to open the Add scope dialog.

    Add required scopes.



    SERVICE/API
    REQUIRED SCOPES
    https://www.googleapis.com/auth/cloud-platform
    Cloud Firestore API https://www.googleapis.com/auth/datastore
    Google Cloud Storage JSON API https://www.googleapis.com/auth/devstorage.read_write
    Firebase Management API https://www.googleapis.com/auth/firebase.readonly

    Authorized domains
    		 Boost.space Integrator.com

    integromat.com
    [Note] Note
    You don’t need to submit your consent screen and application for verification by Google. Just click the Save button after you fill in the required fields on this page.

  11. Go to Credentials. Click on the +CREATE CREDENTIALS, and select the OAuth Client ID option.

  12. Fill in the required fields as follows, and then click the CREATE button to create the application:

    Application type
    		 Web application

    Name
    		 e.g. Boost.space Integrator

    Authorized redirect URIs
    		 https://www.integromat.com/oauth/cb/google-custom

  13. A dialog containing the app’s Client ID and Client Secret is displayed. Save them to a safe place for later use.

  14. Go to Boost.space Integrator, open the Create a connection dialog of the desired Google Cloud Firestore module, enter the Client ID and Client Secret from step 13 above in the respective fields, and click Continue.

  15. Sign in with your Google account.
  16. The This app isn’t verified window may appear.
    [Note] Note
    The app = your OAuth client you have created above.
  17. Click on the Advanced link, and then on the Go to Boost.space Integrator (unsafe) link to allow access using your custom OAuth client.

  18. Click Allow (2x) to grant Boost.space Integrator permission.

  19. Click the Allow button to confirm your choices.


The connection to your Google Cloud Firestore account has been established. Now, create a Firebase project and a Firestore database.

Creating a Firebase Project

  1. Sign in to Google Firebase Console using your Google credentials.
  2. Click Create a project.

  3. Enter the desired project name, and click the Create button. Set Google Analytics settings as needed.
  4. Create a Firestore Database.


Now, you can build your scenario using the Google Cloud Firestore modules.

Documents

Watch New Documents

Retrieves document details when a document is created in the specified collection.


Connection
 Establish a connection to your Google Cloud Firestore account.

Input the collection path
 Select whether to specify the project, database, and collection manually (By Mapping) or using a drop-down menu (By Dropdown).

Collection Path
 Enter the collection path in the following format:

projects/{project_id}/databases/{database_id}/documents/{collection_id}

For example: projects/nifty-anyway-295114/databases/(default)/documents/TestCollection

Limit
 Enter the maximum number of documents Boost.space Integrator will return during one execution cycle.

Mask
 Specify field paths on a document you want to return. If a document has a field that is not present in this mask, that field will not be returned in the response.

Create a Document

Creates a new document.


Connection
 Establish a connection to your Google Cloud Firestore account.

Input the collection path
 Select whether to specify the project, database, and collection manually (By Mapping) or using a drop-down menu (By Dropdown).

Collection Path
 Enter the collection path in the following format:

projects/{project_id}/databases/{database_id}/documents/{collection_id}

For example: projects/nifty-anyway-295114/databases/(default)/documents/TestCollection

Document Fields
 Specify the name and value of the document’s field(s) you want to add to the collection.


Field Name
 Enter the name of the document’s field.

Value Type
 Select the value type, and specify the field’s value.

Document ID
 Specify the document ID. If not specified, an ID will be assigned by the service. For best performance, let Firestore assign the ID, or make sure to avoid hotspots. For best compatibility with the API, avoid using special characters.

Mask
 Specify field paths on a document you want to return. If a document has a field that is not present in this mask, that field will not be returned in the response.

Get Documents

Retrieves specified documents.


Connection
 Establish a connection to your Google Cloud Firestore account.

Project
 Select the project or enter the project ID of the project you want to retrieve documents from.

Documents
 Specify the documents you want to retrieve.

Enter the document path in the following format:

projects/{project_id}/databases/{database_id}/documents/{document_path}

For example: projects/nifty-anyway-293ad4/databases/(default)/documents/Test/FhmIXJYB7fQ0iURF2F4I

Limit
 Set the maximum number of documents Boost.space Integrator will return during one execution cycle.

Consistency Selector
 Select the consistency mode for this transaction.


  • Transaction

    Reads documents in a transaction.


  • New Transaction

    Starts a new transaction, and reads the documents.


  • Read Time

    Reads documents as they were at the given time. This may not be older than 270 seconds. Refer to the list of supported date and time formats.

List Documents

Retrieves all documents in the collection.


Connection
 Establish a connection to your Google Cloud Firestore account.

Input the collection path
 Select whether to specify the project, database, and collection manually (By Mapping) or using a drop-down menu (By Dropdown).

Collection Path
 Enter the collection path in the following format:

projects/{project_id}/databases/{database_id}/documents/{collection_id}

For example: projects/nifty-anyway-295114/databases/(default)/documents/TestCollection

Limit
 Enter the maximum number of documents Boost.space Integrator will return during one execution cycle.

Show Missing
 Select if the list should show missing documents. A missing document is a document that does not exist but has sub-documents. These documents will be returned with a key, but will not have the fields Document.create_time, or Document.update_time set.

Order By
 Specify the field to order results by.

Mask
 Specify field paths on the document you want to return. If a document has a field that is not present in this mask, that field will not be returned in the response.

Consistency Selector
 Select the consistency mode for this transaction.


  • Transaction

    Reads documents in a transaction.


  • New Transaction

    Starts a new transaction, and reads the documents.


  • Read Time

    Reads documents as they were at the given time. This may not be older than 270 seconds. Refer to the list of supported date and time formats.

List Collection IDs


Connection
 Establish a connection to your Google Cloud Firestore account.
Input the document path Select whether to specify the project, database, and collection manually (By Mapping) or using a drop-down menu (By Dropdown).

Document Path
 Enter the document path in the following format:

projects/{project_id}/databases/{database_id}/documents/{document_path}

For example: projects/nifty-anyway-293ad4/databases/(default)/documents/Test/FhmIXJYB7fQ0iURF2F4I

Limit
 Set the maximum number of collection IDs Boost.space Integrator will return during one execution cycle.

Query Documents

Runs a query.


Connection
 Establish a connection to your Google Cloud Firestore account.
Input the document path Select whether to specify the project, database, and collection manually (By Mapping) or using a drop-down menu (By Dropdown).

Document Path
 Enter the document path in the following format:

projects/{project_id}/databases/{database_id}/documents/{document_path}

For example: projects/nifty-anyway-293ad4/databases/(default)/documents/Test/FhmIXJYB7fQ0iURF2F4I

(Select)


Fields

 Specify the fields you want to return. If no fields are specified, all fields will be returned.

(From)


Collection ID

 Specify the collection to query. Enter the collection ID. When set, selects only collections with this ID.

All Descendants
 Select the No option to select only collections that are immediate children of the parent specified in the query request. When enabled, this option selects all descendant collections.

Where
 Set up the filter settings. Refer to the list of operators.

Order By
 Specify the field you want to order results by.

Limit
 Enter the maximum number of documents Boost.space Integrator will return during one execution cycle.
[Note] Note
Every query requires an Index.For the most basic queries, Firestore creates indexes by default.

But, some queries require you to set up an Index manually. Follow the steps below to set up the Index.
  1. After sending a request that requires setting up the Index manually, the Firestore module will provide a link in the Error Message.

  2. Open the link in your browser. You will be redirected to Firestore > Indexes.
  3. Click the Create Index button. Wait a few minutes until Firestore completes the index creation.

  4. Now, the Query Documents module will work without an error.


Update a Document

Updates or inserts a document.


Connection
 Establish a connection to your Google Cloud Firestore account.
Input the document path Select whether to specify the project, database, and collection manually (By Mapping) or using a drop-down menu (By Dropdown).

Document Path
 Enter the document path in the following format:

projects/{project_id}/databases/{database_id}/documents/{document_path}

For example: projects/nifty-anyway-293ad4/databases/(default)/documents/Test/FhmIXJYB7fQ0iURF2F4I

Add or Update Fields
 Specify document’s fields you want to add or update.

Add: Enter the name that does not exist in the document, and specify the desired value

Update: Enter the name of the existing field, and specify the new value.

Delete Fields
 Specify the fields you want to remove from the document. If the field is in both Add or Update Fields and Delete Fields, the field will be updated and NOT deleted. None of the fields may contain a reserved name.

Mask
 Specify field paths on a document you want to return. If a document has a field that is not present in this mask, that field will not be returned in the response.

Delete a Document

Deletes a single document.


Connection
 Establish a connection to your Google Cloud Firestore account.
Input the document path Select whether to specify the project, database, and collection manually (By Mapping) or using a drop-down menu (By Dropdown).

Document Path
 Enter the document path in the following format:

projects/{project_id}/databases/{database_id}/documents/{document_path}

For example: projects/nifty-anyway-293ad4/databases/(default)/documents/Test/FhmIXJYB7fQ0iURF2F4I

Storage

[Warning] Warning
Paid Firestore account: Blaze Plan is required to use the Storage modules.

Backup to Google Cloud Storage

Exports a copy of all or a subset of documents from Google Cloud Firestore to Google Cloud Storage.

Please read the How to Backup a Firestore Database, the No-code Way article.

Restore from Google Cloud Storage

Imports documents into Google Cloud Firestore. Existing documents with the same name are overwritten.

Make an API Call

Allows you to perform a custom API call.


Connection
 Establish a connection to your Google Cloud Firestore account.

URL
 Enter a path relative to https://firestore.googleapis.com.For example: /v1beta2/projects/{project_id}/databases/(default)/indexes.

[Note] Note
For the list of available endpoints, refer to the Cloud Firestore API Documentation.

Method
 Select the HTTP method you want to use:


GET

to retrieve information for an entry.


POST

to create a new entry.


PUT

to update/replace an existing entry.


PATCH

to make a partial entry update.


DELETE

to delete an entry.

Headers
 Enter the desired request headers. You don’t have to add authorization headers; we’ve already done this for you.

Query String
 Enter the request query string.

Body
 Enter the body content for your API call.

Example of Use – List Documents

The following API call returns all documents in the specified collection in your Cloud Firestore account:

URL:/v1/projects/{project_id}/databases/(default)/documents/{collection_id}/

Method:

GET


The result can be found in the module’s Output under Bundle > Body > documents.In our example, 3 documents were returned:
