Active with remarks
This application needs additional settings. Please follow the documentation below to create your connection.



The Infobip integrator. Designed to work with data inside the application.']module[/tooltip]s allow you to send and retrieve the SMS in your Infobip account.

Getting Started with Infobip


  • An Infobipe account – create an account at

The module dialog fields that are displayed in bold (in the Integrator scenario, not in this documentation article) are mandatory!

Connecting Infobip to Integrator

To connect your Infobip account to Integrator you need to obtain the Email address and API Key from your Infobip account and insert them in the Create a connection dialog in the Integrator module.

1. Log in to your Infobip account.

2. From the Dashboard, copy the API Key to your clipboard.


3. Log in to your Integrator account and add a scenario from Infobip app into an Integrator scenario.

4. Click Add next to the Connection field.


5. In the Connection name field, enter a name for the connection.

6. In the API Key field, enter the API key copied in step 2.

7. In the Domain field, enter your Infobip account domain name. For example, if your account URL address is, then your domain is xyz.

8. Click Continue.

The connection has been established.

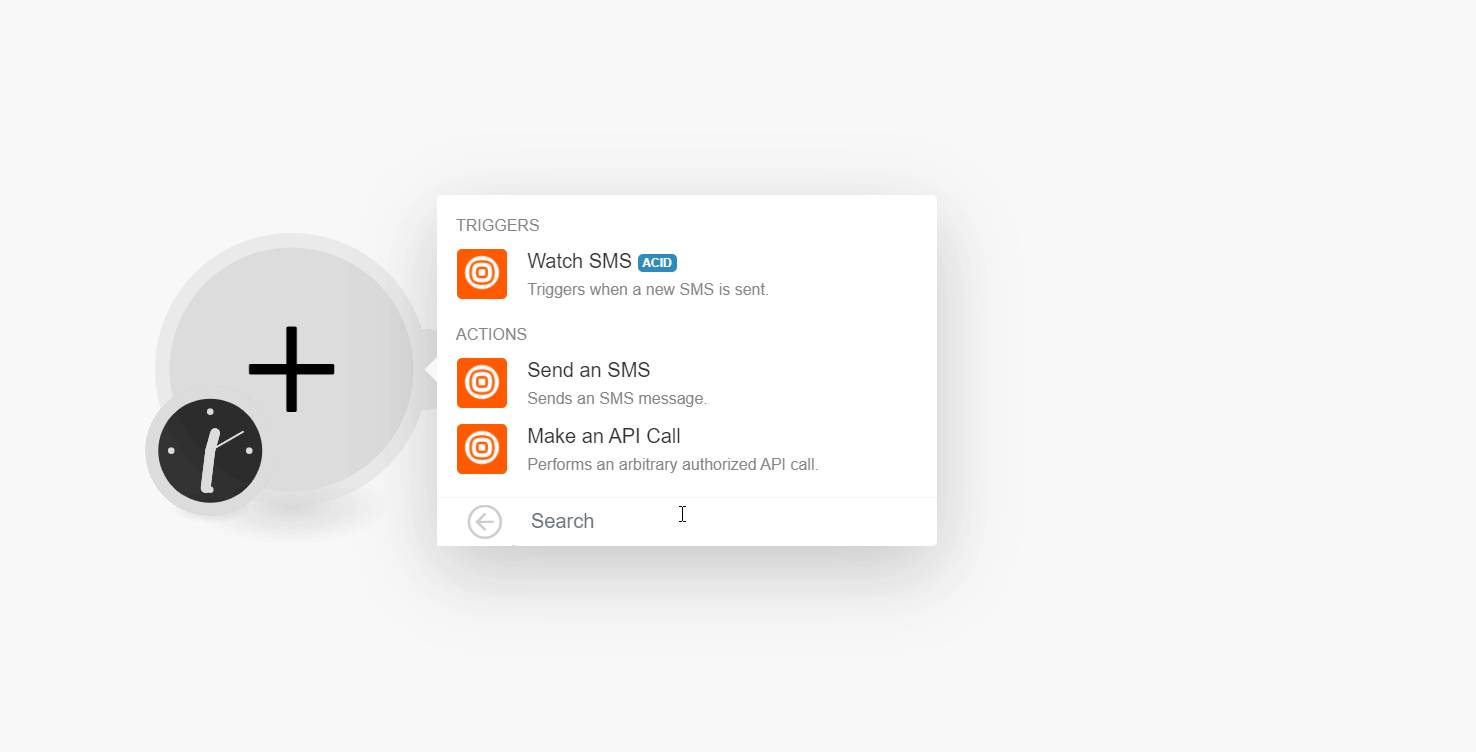

Watch SMS

Triggers when a new SMS is sent.


Establish a connection to your Infobip account.


Set the maximum number of SMS Integrator should receive during one execution cycle.


Send an SMS

Sends an SMS message.


Establish a connection to your Infobip account.


Add the messages you want to send:


Add the details of the recipient to send the message:ToEnter (map) the recipient’s email address.Message IDEnter (map) the Message-ID you want to send to the recipient.


Enter (map) the message text you want to send.


Enter (map) the transliteration of your sent message from one script to another.Transliteration is used to replace characters that are not recognized as part of your defaulted alphabet.

Intermediate Report

Select whether you want to send the message immediately.


Select whether you want to send hte message as a flash to the recipient that displays on the lock screen.

Validity Report

Enter (map) the message validity in minutes.


Enter (map) the sender details who is sending the message. You can enter a maximum of three characters.

Send At

Enter (map) the date and time when you want to send the message. See the list of supported date and time formats.

Language Code

Select or map the language in which the message is to be sent:

  • Turkish

  • Greek

  • Cyrillic

  • Central European

  • Non-Unicode

Notify URL

Enter (map) the URL on your call back server to which a delivery report will be sent. For more information, see the Delivery report format.

Notify Content-Type

Select or map the preferred content type for the notification:

  • JSON

  • XML


Select whether you want to receive the notification for the message.

Callback Data

Enter (map) the additional client’s data that will be sent on the Notify URL.


Add the binary items such as ESM class, Hex, and Data Coding details for the message.

Delivery Time Window

Select or map the specific scheduling options to send a message within daily or hourly intervals. For example, Monday, Tuesday, etc.,


HourEnter (map) the Hour the time window opens when used in from property or closes when used into the property.MinuteEnter (map) the minute the time window opens when used in from property or closes when used into the property.


HourEnter (map) the hour the time window opens when used in from property or closes when used into the property.MinuteEnter (map) the minute the time window opens when used in from property or closes when used into the property.


Add the regional distributor ledger technology (DLT) information:Content Template IDEnter (map) the Registered DTL Content Template ID that matches the message you are sending.Principal Entity IDEnter (map) your assigned DTL Principal Entity ID.

Bulk ID

Enter (map) the Bulk ID assigned to the request if you are messaging multiple recipients or sending multiple messages via a single API request. If not provided, it will be auto-generated and returned in the API response. This Bulk ID is used to fetch delivery reports and message logs.


Add the tracking details:


Enter (map) the tracking type. For example, one-time PIN or social invites.


Select or map the option to track the message for conversion rates:

  • SMS

  • URL

Process Key

Enter (map) the process key which identifies the conversion tracking.

Sending Speed Limit

Add the SMS send limit:AmountEnter (map) the number of messages to send per time unit.Note: Boosting this parameter will not result in faster sending speeds beyond infrastructure capabilities.Time UnitSelect or map the time unit to send the SMS:

  • Day

  • Hour

  • Minute

Make an API Call

Performs an arbitrary authorized API call.


Establish a connection to your Infobip account.


Enter a path relative to https://<domain> For example,/people/2/tagsFor the list of available endpoints, refer to the Infobip API Documentation.


Select the HTTP method you want to use:

GET to retrieve information for an entry.

POST to create a new entry.

PUT to update/replace an existing entry.

PATCH to make a partial entry update.

DELETE to delete an entry.


Enter the desired request headers. You don’t have to add authorization headers; we already did that for you.

Query String

Enter the request query string.


Enter the body content for your API call.

Example of Use – Get Tags

The following API call returns all the tags from your Infobip account:

URL: /people/2/tags

Method: GET


Matches of the search can be found in the module’s Output under Bundle > Body > tags. In our example, 3 tags were returned:
