| Active with remarks |
|---|
| This application needs additional settings. Please follow the documentation below to create your connection. |
DocuWare enables organizations of any size to digitize, secure and automate business information and processes. DocuWare offers rich capabilities for integration to keep systems, processes, and people fully connected and eliminate the hassle of manual data entry, frustrating searches, double-checking everything, and incomplete data sets.
With the DocuWare modules in Boost.space Integrator, you can:
-
store a document in the store
-
list, retrieve, search, and download files and documents
-
convert, delete, transfer, update, append, delete, and replace files, and documents
To get started with DocuWare, create an account at docuware.com.
![[Note]](https://docs.boost.space/wp-content/uploads/2022/11/note.png) |
Note |
|---|---|
|
To be able to use DocuWare with Boost.space Integrator, it is necessary to have a DocuWare Cloud System running. |
|
|
Note |
|---|---|
|
The module dialog fields that are displayed in bold (in the Boost.space Integrator scenario, not in this documentation article) are mandatory! |
To connect the Docuware app with the Boost.space Integrator:
-
Log in to your Boost.space Integrator and add a module from the DocuWare into a Boost.space Integrator scenario.
-
Click Add next to the Connection field.
-
In the Connection name field, enter a name for the connection.
-
In the DocuWare Server URL field, enter the DocuWare Cloud System URL. For example,
organization.docuware.cloud. -
In the DocuWare Username and DocuWare Passwords fields, enter your DocuWare account credentials respectively.
-
Click Save.
You have successfully connected the DocuWare app with the Boost.space Integrator and can now build scenarios.
You can store documents using the following module.
Store a document in a file cabinet or document tray.
|
|
|
|
|
Choose the option to enter the details for storing a document:
|
|
|
Select or map the ID from a File Cabinet or a Document Tray. For example in the Platform, under the File Cabinet endpoint and Document Trays, the IDs are recognizable by
|
|
|
Select or map the ID of the store dialog you want to use. The dialog must have a relation to the File Cabinet or Document Tray. In the case of a Document Tray, the relation is coming from the assigned File Cabinet and can be found in the parameter Finding the right dialog is possible via the following platform endpoint, |
|
|
Enter (map) the index field and its value. You can add multiple fields. If you select Map mode, every field name must be entered in the value and the correct field type must be selected. Alternatively, you can map the fields with a previous module value. |
|
|
Enter (map) the file name and data for the file used to store the file. |
You can list file cabinets, retrieve document information, and search and download files and documents using the following modules.
Lists all file cabinets from an organization.
|
|
|
|
|
Set the maximum number of Cabinets Boost.space Integrator will return during one execution cycle. The default value is 100. |
Gets a document complete with all keyword fields and table fields.
|
|
|
|
|
Select or map a File Cabinet or Document Tray ID whose document details you want to retrieve. The ID can be found in the Platform under the File Cabinet endpoint and Document Trays are recognizable by
|
|
|
Enter (map) a Document ID whose details you want to retrieve. You can find the document ID at the endpoint, |
Searches for one or more documents in a file cabinet or document tray.
|
|
|||||||
|
|
Select an option to enter the document details: |
||||||
|
|
Enter (map) the File Cabinet ID or Document Tray ID whose documents you want to search. The ID can be found in the Platform under the File Cabinet endpoint and Document Trays are recognizable by
|
||||||
|
|
Enter (map) the Search Dialog ID of the document you want to search. The dialog must have a relation to the File Cabinet or Document Tray. In the case of a Document Tray, the relation is coming from the assigned File Cabinet and can be found in the parameter @AssignedCabinetId. Finding the right dialog is possible via the following platform endpoint,
|
||||||
|
|
If you are selecting Map option, enter (map) the fields to search:
If you are choosing, Select option, enter the complete details in Text format. |
||||||
|
|
Set the maximum number of documents Boost.space Integrator will return during one execution cycle. |
Downloads a file from a document.
|
|
|
|
|
Select or map a File Cabinet ID or Document Tray ID whose file you want to download. The ID can be found for example in the Platform under the File Cabinet endpoint and Document Trays are recognizable by
|
|
|
Select or map a Document ID whose file you want to download.
|
|
|
Enter (map) the position of the file in the document. By default, the position starts with 1. |
Downloads a document (e.g., original, PDF with annotations, or PDF without annotations).
|
|
|
|
|
Select or map a File Cabinet ID or Document Tray ID whose document you want to download. |
|
|
Select or map a Document ID you want to download. |
|
|
Select the download format:
Or you can map the options as mentioned below:
When original/Auto is chosen and the document consists of multiple files a ZIP container file will be created. |
You can replace, delete and transfer the documents, and files using the following modules.
Converts the index fields of a document or a list of documents to a flat list.
|
|
|||||||||||||||
|
|
Enter (map) the index fields:

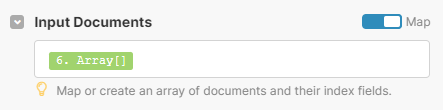

You can also Map Index Field from the previous module. You can Map Input Documents from the previous array aggregator. Overview for an aggregator before this module is shown in the below image. Select the Target type and map the value from a previous module. Map in this module the array from the aggregator. |
||||||||||||||
|
|
Enter (map) the data record fields separated by a comma to be displayed in the list.
|
Deletes a document in a file cabinet.
|
|
|
|
|
Select or map a File Cabinet or Document Tray ID whose documents you want to delete. The ID can be found in the Platform under the File Cabinet endpoint and Document Trays are recognizable by
|
|
|
Enter (map) a Document ID you want to delete. You can find the Document IDs at the platform endpoint,
|
Transfers a document from one to another file cabinet.
|
|
|||||
|
|
Select or map a Source File Cabinet or Document Tray ID whose document you want to transfer. The ID can be found in the Platform under the File Cabinet endpoint and Document Trays are recognizable by
|
||||
|
|
Choose an option to enter the document details:
|
||||
|
|
Enter (map) a File Cabinet or Document Tray ID to transfer the document. In selection mode, each field is loaded from the selected dialog. The ID can be found in the Platform under the File Cabinet endpoint and Document Trays are recognizable by
|
||||
|
|
Enter (map) the Index Dialog ID. The dialog must have a relation to the File Cabinet or Document Tray. In the case of a Document Tray, the relation is coming from the assigned File Cabinet and can be found in the parameter @AssignedCabinetId. Finding the right dialog is possible via the following platform endpoint,
|
||||
|
|
Enter (map) the Document IDs:
|
||||
|
|
Select whether to retain the document at the source file cabinet or document after transferring. |
||||
|
|
Select whether to use intelligent indexing data for every empty index field. |
Updates the index fields of a document.
|
|
|||||||
|
|
Choose between a guided select mode or the straight map mode. |
||||||
|
|
Select or map a File Cabinet or Document Tray ID whose document index fields you want to update. In selection mode, each field is loaded from the selected dialog. The ID can be found for example in the Platform under the File Cabinet endpoint and Document Trays are recognizable by
|
||||||
|
|
Enter (map) a Document ID whose index fields you want to update. You can find the IDs at the platform endpoint,
|
||||||
|
|
In the Select option , enter (map) the index fields: When Map mode is selected every filed name must be entered the value and the correct field type must be selected.
Alternatively, you can map the fields with a previous module value. For more information, see How to use Index Fields. |
Adds a file to a document.
|
|
|
|
|
Select or map a File Cabinet or Document Tray ID whose file you want to append. The ID can be found for example in the Platform under the File Cabinet endpoint and Document Trays are recognizable by
|
|
|
Enter (map) a Document ID of a document to append the file. You can find the ID at the platform endpoint,
|
|
|
Enter (map) the file name and data of the file details used to append the file. |
Deletes a file in a document.
|
|
|
|
|
Select or map a File Cabinet or Document Tray ID whose file you want to delete. The ID can be found for example in the Platform under the File Cabinet endpoint and Document Trays are recognizable by
|
|
|
Enter (map) a Document ID of a document to delete the file. You can find at the platform endpoint,
|
|
|
Enter (map) the position of a file, starting with 1. |
Replaces a file in a document.
|
|
|
|
|
Select or map a File Cabinet or Document Tray ID whose file you want to replace. |
|
|
Enter (map) a Document ID of a document to replace the file. |
|
|
Enter (map) the position of a file, starting with 1. |
|
|
Enter (map) the filename and data details: |
Places a stamp on a file page in a document.
|
|
|
|
|
Choose between a guided select mode or the straight map mode. |
|
|
Select or map a File Cabinet or Document Tray ID whose file place you want to stamp. The ID can be found in the Platform under the File Cabinet endpoint and Document Trays are recognizable by
|
|
|
Enter (map) a Document ID to which you want to stamp the file. You can find IDs at the platform endpoint,
|
|
|
Enter (map) the position of a file, starting with 1. |
|
|
Enter (map) the page number to place the stamp on. For example, 2 would place a stamp on the file’s second page. |
|
|
Enter (map) a Stamp ID of a stamp to place on file. |
|
|
Enter (map) the field name and its value. You can add multiple fields. |
If you use a select option, you need to enter the values manually.
If you select the Map option, you enter all the values from a previous module.
Enter the position for the value in that example 16 it is.
You can Map a specific keyword element.
You can also use these Map and Select option combined.
Select the value from a previous module.
Be aware of entering the position of the value in that example 16 it is.
To enter the data in JSON format, convert all apostrophe characters to quotation marks.
In Select option, you can get map the whole Table. Use the value property in the index fields.
Ensure to set the position for the value.
You can map a specific element from the previous module table index field.
Entering a value in the JSON format looks like, { “Tablecolumn”: “Value“, “Tablecolumn2“, “Value“ }.
