Pipefy

Getting Started with Pipefy

The Pipefy . Designed to work with data inside the application.']module[/tooltip]s allow you to monitor new, moved, done, overdue, late, and expired cards or create, update, list, or delete cards and tables in your Pipefy account.

Prerequisites

A Pipefy account

In order to use Pipefy with Boost.space Integrator, it is necessary to have a Pipefy account. If you do not have one, you can create a Pipefy account at app.pipefy.com/registrations/new.

Connecting Pipefy to Boost.space Integrator

To connect your Pipefy account to Boost.space Integrator you need to obtain the API Key from your Pipefy account and insert to the Boost.space Integrator module.

1. Open your Pipefy User settings.

2. Go to the Personal access tokens tab and click the Generate new token button.

3. Copy the generated token.

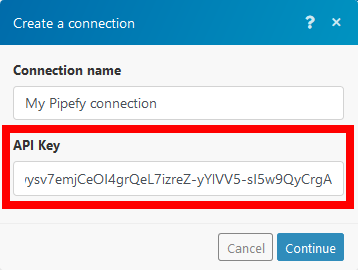

4. Insert the token to the API Key field in the Create a connection dialog.

The connection is now established.

Triggers

	Note
	Sometimes it may take a few minutes until the is triggered. Unfortunately, Boost.space Integrator can’t do anything about it. These delays are caused by Pipefy servers.

Watch New Cards

Triggers when a new card is created.

Webhook name	Enter the name for the webhook.
Connection	Establish a connection to your Pipefy account.
Pipe ID	Select the pipe you want to watch for new cards.

Watch Moved Cards

Triggers when a card is moved in a selected pipe.

Webhook name	Enter the name for the webhook.
Connection	Establish a connection to your Pipefy account.
Pipe ID	Select the pipe you want to monitor for moved cards.

Watch Done Cards

Triggers when a card is moved into the Done phase.

Webhook name	Enter the name for the webhook.
Connection	Establish a connection to your Pipefy account.
Pipe ID	Select the pipe you want to monitor for done cards.

Watch Overdue Cards

Triggers when a card’s overdue date and time is passed.

Webhook name	Enter the name for the webhook.
Connection	Establish a connection to your Pipefy account.
Pipe ID	Select the pipe you want to monitor for cards that passed the overdue date and time.

Watch Late Card

Triggers when a card remains in the phase longer than specified in the late alert setting.

Webhook name	Enter the name for the webhook.
Connection	Establish a connection to your Pipefy account.
Pipe ID	Select the pipe you want to monitor for cards that are late.

Watch Expired Cards

Triggers when a card remains in the pipe longer than specified in the Pipe settings.

Webhook name	Enter the name for the webhook.
Connection	Establish a connection to your Pipefy account.
Pipe ID	Select the pipe you want to monitor for expired cards.

Pipes

Create a Card

Creates a new card in a selected pipe.

Connection	Establish a connection to your Pipefy account.
Pipe ID	Select the pipe you want to create a new card in.
Main Fields	Add fields for the card you want to create. Value of the entered field must be in the respective format. Available field types. E.g. when the `Due Date` type field is selected, the value must be in `DD/MM/YYYY HH:MM.`
Additional fields	Use this for additional custom fields. You can use this, for example, for adding the checkbox field type, as described below.
Assignees	Enter the users assigned to this card.

	Caution
	Boost.space Integrator is unable to recognize a custom field type. E.g. if you want to add a checkbox with one of the options selected, it is necessary to use the following workaround.

Creating Card with Additional Field

Example

A card that contains a checkbox with the second option selected.

In order to create a card that contains the checkbox field type, it is necessary to use JSON > Parse JSON module.

1. Open the JSON > Parse JSON module.

2. Enter the desired JSON string.

sample JSON string that adds a checkbox “checkbox” and selects the option “two”:

{
"fields": [{
"field_id": "checkbox",
"field_value": ["two"]
}]
}

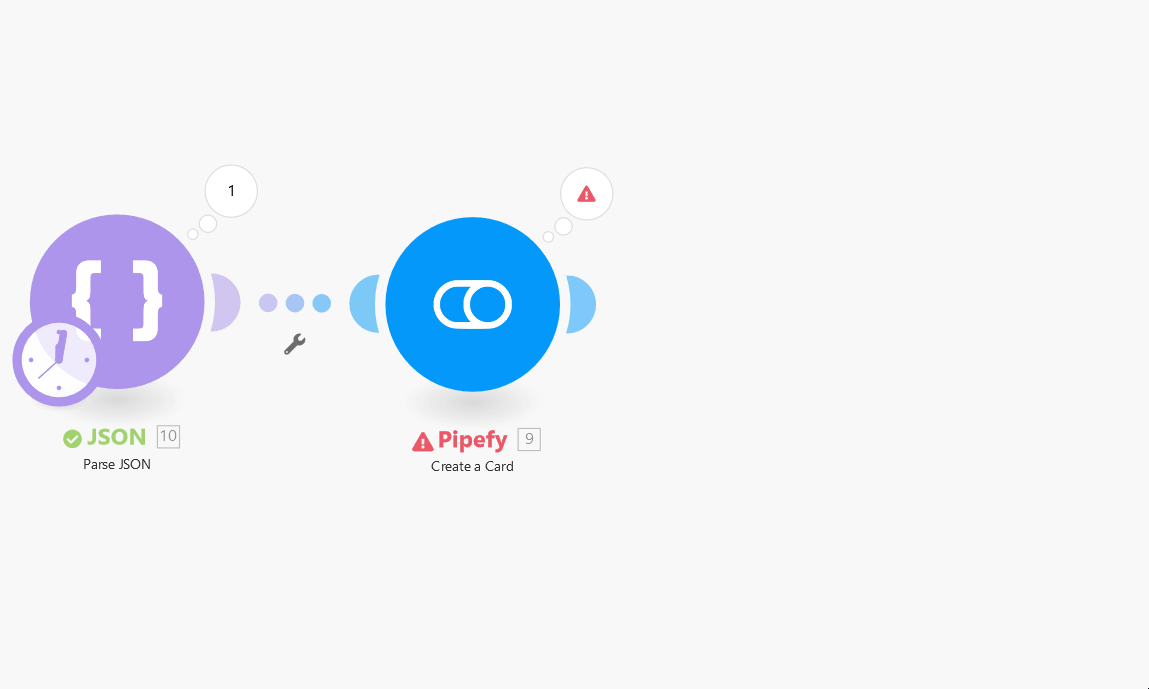

3. Link the Parse JSON module with the Create a Card module.

4. Open the Create a Card module and map the module that contains the JSON string for selecting the checkbox option.

5. The card that contains the selected checkbox has been created.

Delete a Card

Deletes a card.

Connection	Establish a connection to your Pipefy account.
Card ID	Enter (map) the ID of the card you want to delete.

Get a Card Info

Retrieves information about a selected card.

Connection	Establish a connection to your Pipefy account.
Card ID	Enter (map) the ID of the card you want to retrieve information about.

List Cards

Retrieves cards from a selected pipe.

Connection	Establish a connection to your Pipefy account.
Pipe ID	Select the pipe you want to list cards from.
Card name	You can filter returned cards by an entered term.
Order	Select the ordering of the returned cards.
Limit	Set the maximum number of results that Boost.space Integrator will return during one cycle.

Move a Card to Phase

Moves a card to a desired phase.

Connection	Establish a connection to your Pipefy account.
Mode	Select whether you want to map the Card ID and Phase ID or select Organization, Pipe, Card, and Phase manually.

Update a Card Field

Connection	Establish a connection to your Pipefy account.
Mode	Select whether you want to enter or map the Card ID and Field name or select Organization, Pipe, Card and Field manually.
New value	Enter the new value for the card field you want to update.

Tables

Create a Table

Creates a table.

Connection	Establish a connection to your Pipefy account.
Name	Enter a name for the new table.
Organization ID	Select the organization you want to create a table for.
Description	Enter the description of the new table.
Authorization	Read/WriteThe users authorized to access this table can add, edit and remove records. ReadThe users authorized to access this table can only view the records.
Public	If this option is enabled, all team members will have access to this table. Otherwise, only invited users will have access to this table.

Create a Table Record

Creates a record in a selected table.

Connection	Establish a connection to your Pipefy account.
Table ID	Select the table you want to create a new record in.
Fields	Field ID Select the field you want to create. Value Enter the value for the above selected field.
Title	Enter the title for the new table record.
Due date	Enter the date and time. List of supported date and time formats.

Delete a Table Record

Deletes a record from a table.

Connection	Establish a connection to your Pipefy account.
Record ID	Enter (map) the ID of the record you want to delete.

Get a Table Record

Retrieves details about a record from a table.

Connection	Establish a connection to your Pipefy account.
Record ID	Enter (map) the ID of the record you want to retrieve information about.

List Table Records

Returns a list of records from a selected table.

Connection	Establish a connection to your Pipefy account.
Table ID	Select or map the table you want to list records from.
Order	Select the ordering of the returned records.
Limit	Set the maximum number of records that Boost.space Integrator will return during one cycle.

Update a Table Record

Updates a record in a table.

Connection	Establish a connection to your Pipefy account.
Record ID	Enter (map) the ID of the record you want to update.
Table ID	Select the table that contains the record you want to update.
Fields	Select the field and enter its new value.

Other

Make an API Call

Allows you to perform a custom API call.

Connection	Establish a connection to your Pipefy account.
	Please enter complete GraphQL query. E.g.`{ allCards(pipeId:850020) { edges { node { id title assignees { id } comments { text } comments_count current_phase { name } done due_date fields { name value } labels { name } phases_history { phase { name } firstTimeIn lastTimeOut } url } } } }` For the list of available endpoints, refer to the Pipefy GraphQL Queries documentation.
Method	Select the HTTP method you want to use: GET to retrieve information for an entry. POSTto create a new entry. PUT to update/replace an existing entry. PATCHto make a partial entry update. DELETEto delete an entry.
Headers	Enter the desired request headers. You don’t have to add authorization headers; we already did that for you.
Query String	Enter the request query string.
Body	Enter the body content for your API call.

Example of Use – List all cards in the specified pipe

The following API call returns all cards in the pipe with the Pipe ID 850020:

Matches of the search can be found in the module’s Output under Bundle > Body > data > allCards > edges.

In our example, 10 cards were returned:
