Mailgun

[Note] Note

This is the documentation for the new Mailgun app. Here is the documentation for the legacy Mailgun (legacy) app.

Getting Started with Mailgun

The Mailgun modules allow you to monitor delivery messages, clicks, opens, temporary failure, permanent failure, spam complaints, and unsubscribe events, as well as send an email and add, delete, list and retrieve mailing lists in your Mailgun account.

Prerequisites

  • A Mailgun account

In order to use Mailgun with Boost.space Integrator, it is necessary to have a Mailgun account. If you do not have one, you can create a Mailgun account at mailgun.com.

[Note] Note

The module dialog fields that are displayed in bold (in the Boost.space Integrator scenario, not in this documentation article) are mandatory!

Connecting Mailgun to Boost.space Integrator

To connect your Mailgun account to Boost.space Integrator you need to obtain the API Key from your Mailgun account.

  1. Log in to your Mailgun account.

  2. Open Settings > API Security.

  3. Show and copy the Private API Key.

  4. Go to Boost.space Integrator, open the Create a connection dialog of your Mailgun module.

  5. Enter the API Key you have copied in step 3 to the respective field.

[Note] Note

Please ensure that you have selected the correct Base URL (displayed after clicking the Show advanced settings button).

Events

New Event: Delivery Messages

Triggers when the message is successfully delivered to the intended recipient.

Webhook Name

Enter the name for the webhook. E.g. Message Delivered.

Connection

Establish a connection to your Mailgun account.

Domain

Select your Mailgun domain.

New Event: Clicks

Triggers when a recipient clicks on links in your message.

Webhook Name

Enter the name for the webhook. E.g. Message Clicked.

Connection

Establish a connection to your Mailgun account.

Domain

Select your Mailgun domain.

New Event: Opens

Triggers when a recipient opens your message.

[Note] Note

Opens are tracked by including a transparent .png file, which will only work if there is an HTML component to the email (i.e., text only emails will not track opens). You should note that many email service providers disable images by default, so this data will only show up if the recipient clicks on the display images button in his/her email.

Webhook Name

Enter the name for the webhook. E.g. Message Opened.

Connection

Establish a connection to your Mailgun account.

Domain

Select your Mailgun domain.

New Event: Temporary Failure

Triggers when an email is not delivered because the mailbox is full or for other reasons. These addresses are not added to the “Bounces” table.

Webhook Name

Enter the name for the webhook. E.g. Soft Bounce.

Connection

Establish a connection to your Mailgun account.

Domain

Select your Mailgun domain.

New Event: Permanent Failure

Triggers when the recipient is not found and the recipient email server specifies that the recipient does not exist.

Mailgun stops attempting delivery to invalid recipients after one Hard Bounce. These addresses are added to the “Bounces” table.

Webhook Name

Enter the name for the webhook. E.g. Hard Bounce.

Connection

Establish a connection to your Mailgun account.

Domain

Select your Mailgun domain.

New Event: Spam Complaints

Triggers when a recipient complains that an email message is spam.

Webhook Name

Enter the name for the webhook. E.g. Spam complaint received.

Connection

Establish a connection to your Mailgun account.

Domain

Select your Mailgun domain.

New Event: Unsubscribed

Triggers when a recipient requests to be unsubscribed from your mailings.

Webhook Name

Enter the name for the webhook. E.g. The recipient unsubscribed.

Connection

Establish a connection to your Mailgun account.

Domain

Select your Mailgun domain.

Email

Send an Email

Sends an email message to the specified email address or mailing list.

Connection

Establish a connection to your Mailgun account.

Domain

Select your Mailgun domain.

Template

Select the template you want to use.

Type of recipient

Select whether to send a message to the email address or the mailing list.

To

Add the email addresses of the recipients.

Mailing List

Select the mailing list you want to send the message to.

From

Enter the email address of the sender (for the From header).

Subject

Enter the subject for the message.

Format

Select whether you want to send the message in the HTML format or as a plaintext.

When you select the HTML format, you can use HTML tags for formatting the message content.

Attachments

Add a file attachment. You can attach more files.

You can you use, for example, the Dropbox > Get a filemodule to provide the file name and file data for the attachment.


CC

Carbon Copy. Add the email address you want to send the copy to.

BCC

Blind Carbon Copy. Add the email address you want to send the blind copy to.

Tag

Enter a tag in order to tag the message. For detailed information about tags refer to the Tags Explained article.

Enable DKIM

Select the Yes option to enable DKIM signatures on per-message basis.

Delivery Time

Enter the time of delivery.The list of supported date formats. E.g. 2019/08/20

[Note] Note

Messages can be scheduled for a maximum of 3 days in the future.

Enable tracking

Select whether to enable tracking on a per-message basis. For more details please refer to the Mailgun API documentation.

Enable click tracking

Select whether to enable click tracking on a per-message basis.

This is a test message

If enabled the message is sent in the test mode. Mailgun will accept the message but will not send it. This is useful for testing purposes.

Custom Headers

h: prefix followed by an arbitrary value allows to append a custom MIME header to the message (X-My-Header in this case). For example, h:Reply-To to specify Reply-To address.

Mailing Lists

Add a Mailing List Member

Adds or updates an emails address in the selected mailing list.

Connection

Establish a connection to your Mailgun account.

Mailing List

Select the mailing list you want to add a member to.

Email Address

Enter the email address of the member that you want to add to the mailing list selected above.

Name

Enter the member name.

Member is subscribed

Select the Yes option to add the member as subscribed, or No as unsubscribed. Default: Subscribed.

Update member if exist

Select the Yes option to update an existing member, or No to return an error if the member already exists.

Vars

Enter JSON-encoded dictionary string with arbitrary parameters, e.g. {"gender":"female","age":27}

Delete a Mailing List Member

Removes an email address from the selected mailing list.

Connection

Establish a connection to your Mailgun account.

Mailing List

Select the mailing list you want to remove a member from.

Email Address

Enter the email address of the member that you want to remove from the mailing list selected above.

Get a Mailing List Member

Retrieves information about a mailing list member.

Connection

Establish a connection to your Mailgun account.

Mailing List

Select the mailing list you want to retrieve a member’s details from.

Email Address

Enter the email address of the member you want to retrieve information about.

List Mailing List Members

Retrieves a list of a mailing list’s members.

Connection

Establish a connection to your Mailgun account.

Mailing List

Select the mailing list you want to retrieve members from.

Limit

Set the maximum number of members Boost.space Integrator will return during one execution cycle.

Other

List Domains

Returns a list of domains in your account with details.

Connection

Establish a connection to your Mailgun account.

Limit

Set the maximum number of domains Boost.space Integrator will return during one execution cycle.

Validate an Email Address

[Note] Note

Requires a paid Mailgun account!

Validates the email address based on Mailbox detection Syntax checks (RFC defined grammar), DNS validation, spell checks, Email Service Provider (ESP), specific local-part grammar (if available).

Connection

Establish a connection to your Mailgun account.

Email Address

Enter the email address you want to validate.

Make an API Call

Allows you to perform a custom API call.

Connection

Establish a connection to your Mailgun account.

URL

Enter a path relative to https://api.mailgun.net (for non EU customers) or https://api.eu.mailgun.net (for EU customers). E.g. /v3/lists/{{MailingList}}/members/pages

[Note] Note

For the list of available endpoints, refer to the Mailgun API Documentation.

Method

Select the HTTP method you want to use:

GET

to retrieve information for an entry.

POST

to create a new entry.

PUT

to update/replace an existing entry.

PATCH

to make a partial entry update.

DELETE

to delete an entry.

Headers

Enter the desired request headers. You don’t have to add authorization headers; we already did that for you.

Query String

Enter the request query string.

Body

Enter the body content for your API call.

Example of Use – List Mailing List Members

The following API call returns a list of all the members of the specified mailing list:

URL:/v3/lists/[email protected]/members/pages


Matches of the search can be found in the module’s Output under Bundle > Body > items.

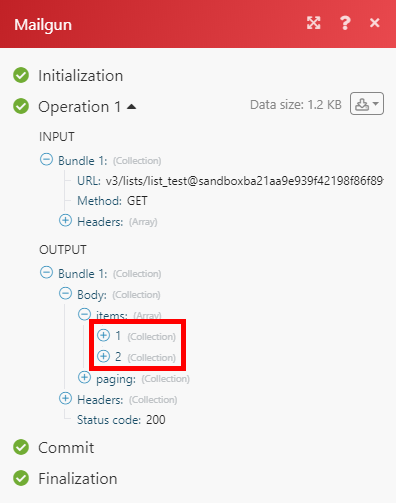

In our example, 2 members were returned:


Sending emails from sandbox

If you use sandbox (if you haven’t set up any domain) and want to send emails, you need to verify the recipients’ email addresses in your Mailgun account’s settings first.For more information, please read the Mailgun documentation.

Sender email address

If you send emails from a verified domain, the email address of the sender must include this domain. If you use, for example, a domain @example.com, you can set up [email protected] ( but not [email protected]) as the sender email address.
